PRODUCTS >DISINFECTION CHAMBERS

DISINFECTION CHAMBER

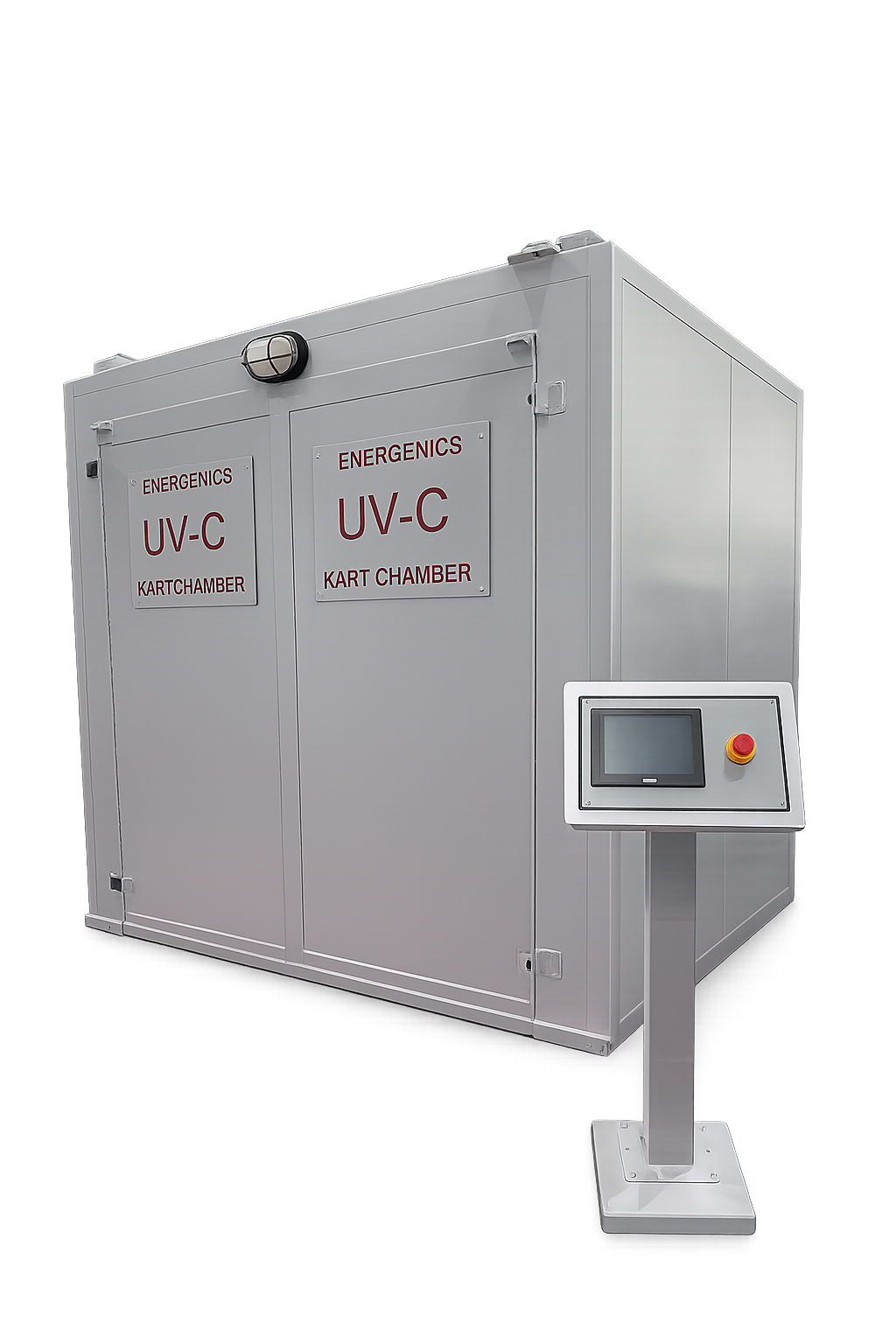

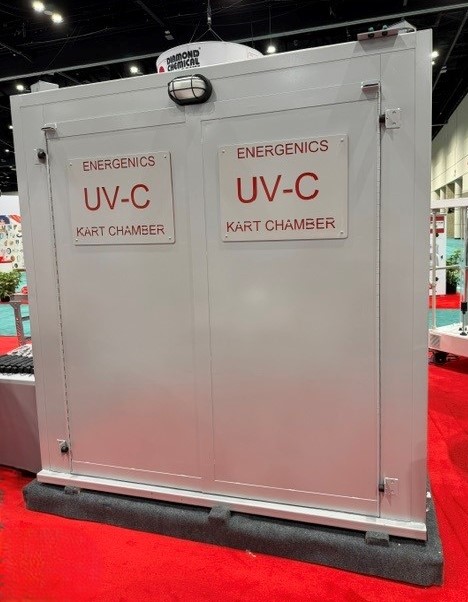

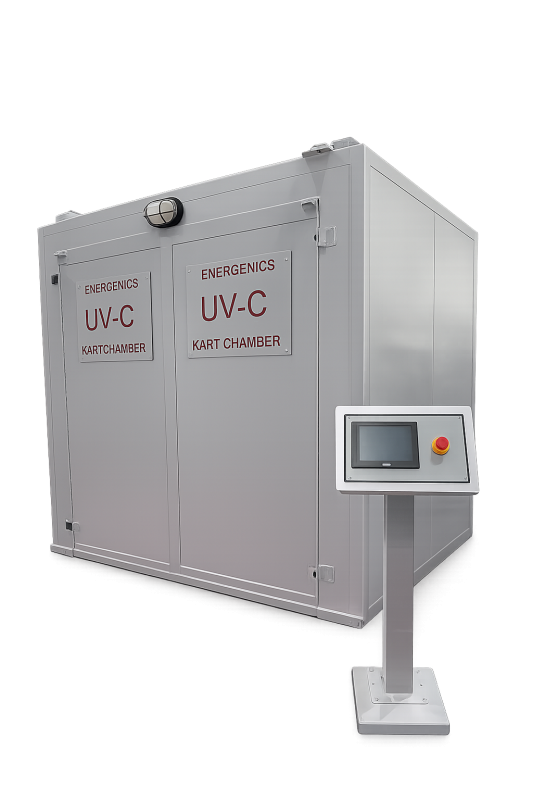

UV CART DISINFECTION CHAMBER

Discover the cutting-edge technology of Energenics’ prefabricated UVC chambers and retrofit kits, carefully engineered to transform linen cart disinfection and exceed current healthcare hygiene standards. UVC disinfection is not only highly efficient and effective but also demonstrates a strong commitment to environmental sustainability by using minimal water and eliminating chemicals from the process. With systems requiring only minimal preventative maintenance, you can reduce downtime and maximize time for other tasks. Although UVC is a relatively new disinfection method in the industrial laundry sector, its proven effectiveness has been recognized for over a century. Healthcare laundries, particularly those handling bagged products, are now experiencing significant cost savings and improved productivity by adopting UVC cart disinfection. Embrace the future of disinfection and elevate your standards with this innovative technology.

How Does It Work?

UVC light energy delivered at 254 nm wavelength is germicidal and highly effective at destroying and deactivating pathogens such as bacteria, viruses, mold, and fungus. Requiring no chemicals, UVC light energy is an efficient and environmentally sustainable way to prevent microorganisms from replicating in any environment.

UV Kart Disinfection Chamber | Energenics Corporation

Pass-Through / Automated Doors

Heavy-Gauge Aluminum Build

Antimicrobial Powder-Coated

Provides Full UVC Containment

Energenics UV-C Cart and Bin Disinfection System

Efficiently and effectively kill bacteria, viruses, and more.

  • Provides treatment dose to effectively eliminate even the most resilient microorganisms.
  • Chemical-Free Disinfection. Save thousands!!
  • Reliable and effective, UVC has demonstrated its disinfection efficacy for over a century.

PRODUCT INFORMATION

  • Rugged, “Laundry-Proof” Design
  • Fastest Standard Treatment Cycle (No Dwell Required)
  • Suitable for ALL Cart Types
  • Quick Installation & Maintenance Free Operation
  • Fully Contained System (No Operator Exposure)
  • Consistent, Repeatable, High-Level Disinfection
  • Requires No Daily Adjustments, Minimizing
    Operating Costs

K1 MODEL TECHNICAL DATA

  • UL Rated Components / Meets CSA
  • Low-Pressure, High-Output, Non-Ozone Lamps
  • Electric: 120/60/1; 20 F.L.A.
  • Compressed Air: 1/2″ NPT; 1 CFM @ 80 psi
  • Ext. Dim. (Doors Closed): 79″L x 56″W x 97″H (K1 Dimensions)
  • Ext. Dim. (w/ Ramps): 127″L x 56″W x 97″H (K1 Dimensions)
  • Int. Dim.: 76″L x 38.75″W x 73.5″H (K1 Dimensions)
  • Weight: ~2,300 lbs
  • Standard Warranty: 1-Year from Date of Purchase
  • Fully Assembled and Tested

SAFETY

  • No Toxic Chemical Exposure Hazard
  • Shatterproof Lamps
  • Emergency Stop Buttons / Interlock Shutoff Switches
  • Reduces Wet Mess After the Treatment Cycle

CONSTRUCTION

  • Heavy Gauge Powder-Coated Aluminum Body
  • HMI Touchscreen Control Pedestal
  • 12,000 Run-Hour, 254nm Germicidal Lamps
  • Structural Base with Leveling Feet
  • Auto Ejection (Option)
  • Roof-Mounted Control Panels To Optimize
    Space

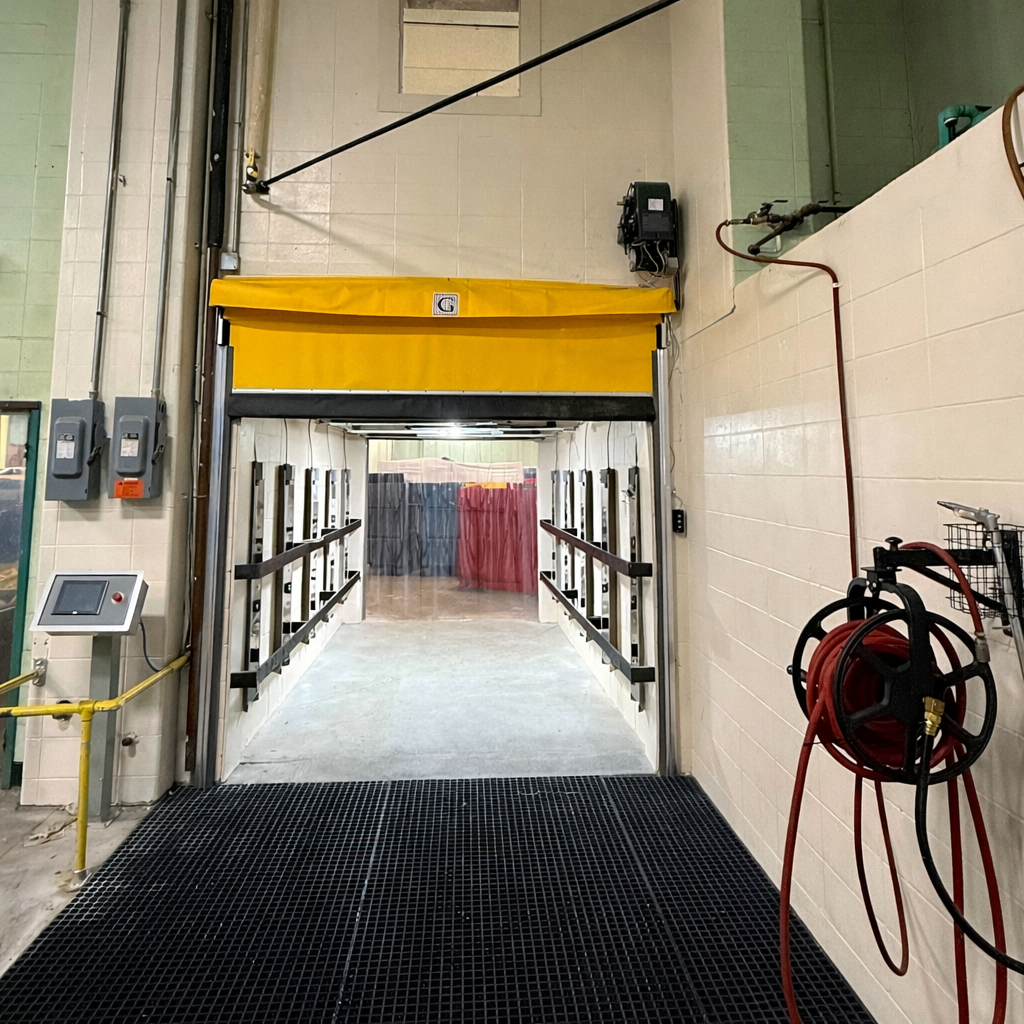

MULTI-CART & RETROFIT OPTIONS AVAILABLE!

Product Support Information

CUSTOMIZED UVC CART CHAMBER

View our HLS Linen Services: Virtual Tour

In 1974, HLS was established to provide cost-effective linen services to health care facilities in the Ottawa Area. Our focus has expanded to include hospitals throughout the Province long-term care facilities, rehabilitation centers, and hospitality clients.

DISINFECTION CHAMBERS FOR THE LAUNDRY INDUSTRY

Energenics provides innovative products to solve the toughest problems in the commercial laundry industry. Whether you’re struggling with lint and dust, need to resolve air flow issues, or want the most cutting-edge technology to battle bacteria, we have a solution for you. Perfect for the healthcare and hospitality industries, but customizable for all industries.

Call Energenics today to learn more about our line of Cart Disinfection Chambers.

(800) 944-1711
